Product Specifications:

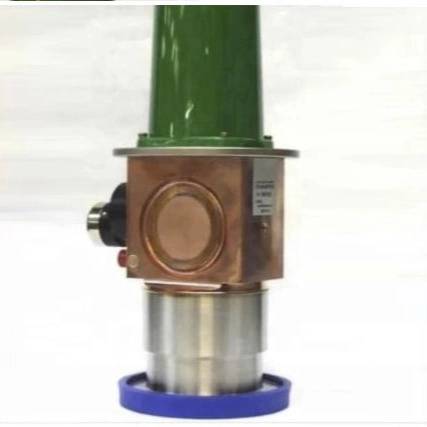

- Product Name: MG5193
- Manufacturer: Teledyne e2v
- Description: Tunable S-band magnetron with frequency 2993 to 3002 MHz

General parameters:

- Type: adjustable frequency
- Application: medical
- Magnetism: isolated
- Frequency: 2993 to 3002 MHz
- Band: S band
- Anode voltage: 48 kV
- Anode peak current: 60 to 110 amps
- Heater voltage: 8.5 V
- Heater current: 9 amps
- Output power: 2.6 MW
- Output Type: Pulse
- Pulse Width: 5 µs
- Output Connection / Waveguide: WR284 / WG10 / R32
- Input Interface: Waveguide
- Cooling System: Cooling with Water
- Weight: 8 kg

This frequency adjustable magnetron MG5193 is very suitable for use in S-band and for all kinds of medical applications, especially in medical and radiotherapy equipment. The pulse technology and its high output power allow it to be used in environments with special needs for radio communication.
