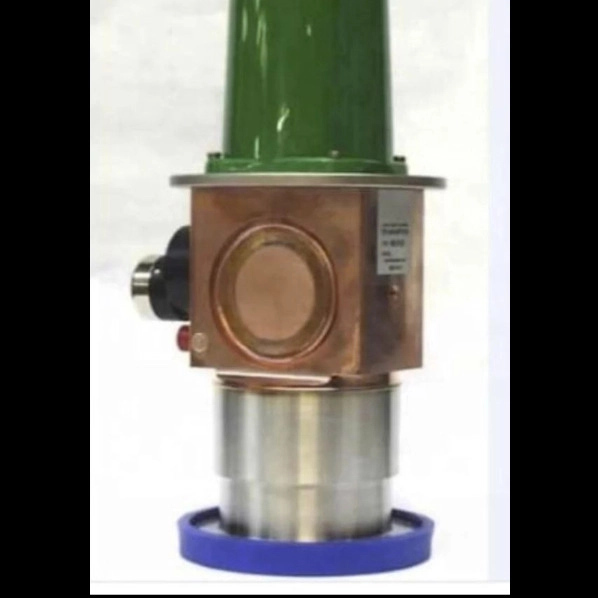

Magnetron MG5193 from Teledyne e2v: full description and technical specifications

Product specifications:
- Product name: MG5193
- Manufacture Manufacturer: Teledyne e2v
- Description: S-band tunable magnetron with a frequency of 2993 to 3002 MHz

General parameters:
- Type: Frequency tunable
- Application: Medical
- Magnetization: isolated
- Frequency: 2993 to 3002 MHz
- Band: S band
- Anode voltage: 48 kV
- Peak anode current: 60 to 110 amps
- Heater voltage: 8.5 V
- Heater current: 9 amps
- Output power: 2.6 MW
- Output type: pulse
- Pulse width: 5 microseconds
- Output connection / Waveguide: WR284 / WG10 / R32
- Input Interface: Waveguide
- Cooling System: Water Cooling
- Weight: 8kg

This MG5193 frequency adjustable magnetron, for use In the S band, it is very suitable for all kinds of medical applications, especially in medical equipment and radiotherapy. The pulse technology and its high output power allow it to be used in environments with special needs for radio communication.
